Dynamax isata 3 Motor Home Class C - Diesel

Previous
  • isata 3 Stock Photo
  • isata 3 Stock Photo
  • isata 3 Stock Photo
  • isata 3 Stock Photo
  • isata 3 Stock Photo
  • isata 3 Stock Photo
  • isata 3 Stock Photo
  • isata 3 Stock Photo
Next
1 of 34
Dynamax offers the fuel-efficient isata 3 series Class C diesel motorhome with full-body paint and contemporary interiors which rest on a Mercedes-Benz Sprinter chassis. The frameless windows and Diamond Shield paint protection are what truly give the isata 3 its sleek and modern design.

You will love the beautiful interiors that feature family-friendly and functional living spaces, and the LED flush-mount ceiling lighting will illuminate the entire coach and accentuate even the smallest of details that have been incorporated into these models, like the premium vinyl flooring and Italian ultralight poplar cabinetry. You will find each kitchen to be just as accommodating as the one in your own home with additions like a convection microwave, a stainless steel sink, and under-cabinet lighting.

With the Dynamax isata 3 series Class C diesel motorhome, you can take on any road trip with complete confidence!
  • isata 3 24FW

    isata 3 24FW Floorplan Image

    Take a Virtual Tour

    Dynamax isata 3 Class C diesel motorhome 24FW highlights: Full-Wall Slide Sleeps ... more about isata 3 24FW

    Specifications

    Sleeps 3
    Slides 1
    Length 24 ft 7 in
    Ext Width 7 ft 10 in
    Ext Height 11 ft 5 in
    Int Height 0 ft
    Interior Color Seashore, Pebble, Espresso

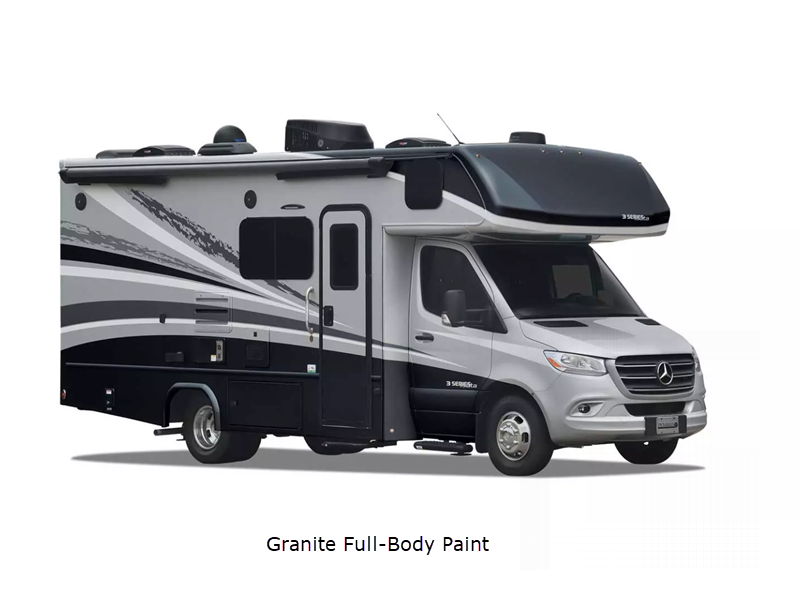

    Exterior Color Cabernet, Cosmic Blue, Granite, Sunset, Khaki
    Hitch Weight 5000 lbs
    Gross Weight 11030 lbs
    Fresh Water Capacity 35 gals
    Grey Water Capacity 32 gals
    Black Water Capacity 32 gals
    Tire Size 16
    Furnace BTU 20000 btu
    Generator 3.6KW Onan LP
    Fuel Type Diesel
    Engine 3.0L V6 Turbo Diesel
    Chassis Mercedes Benz Sprinter
    Horsepower 188 hp
    Fuel Capacity 26 gals
    Wheelbase 170 in
    Available Beds Queen
    Torque 325 ft-lb
    Refrigerator Type Double Door
    Refrigerator Size 7 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight Front 4410 lbs
    Axle Weight Rear 7720 lbs
    LP Tank Capacity 20.3 gals
    Water Heater Type Truma Aqua Go Comfort On Demand
    AC BTU 15000 btu
    TV Info LR 32" LED TV, BR 32" LED TV
    Awning Info 16' Electric with LED Lights
    Gross Combined Weight 15250 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • isata 3 24CB

    isata 3 24CB Floorplan Image

    Dynamax isata 3 Class C diesel motorhome 24CB highlights: 16' Electric Awning ... more about isata 3 24CB

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 1
    Length 25 ft 5 in
    Ext Width 7 ft 10 in
    Ext Height 11 ft 5 in
    Int Height 0 ft
    Interior Color Seashore, Pebble, Espresso
    Exterior Color Cabernet, Cosmic Blue, Granite, Sunset, Khaki
    Hitch Weight 5000 lbs
    Gross Weight 11030 lbs
    Fresh Water Capacity 35 gals
    Grey Water Capacity 32 gals
    Black Water Capacity 32 gals
    Tire Size 16
    Furnace BTU 20000 btu
    Generator 3.6KW Onan LP
    Fuel Type Diesel
    Engine 3.0L V6 Turbo Diesel
    Chassis Mercedes Benz Sprinter
    Horsepower 188 hp
    Fuel Capacity 26 gals
    Wheelbase 170 in
    Available Beds Full
    Torque 325 ft-lb
    Refrigerator Type Double Door
    Refrigerator Size 7 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight Front 4410 lbs
    Axle Weight Rear 7720 lbs
    LP Tank Capacity 20.3 gals
    Water Heater Type Truma Aqua Go Comfort On Demand
    AC BTU 15000 btu
    TV Info LR 32" LED TV, BR 32" LED TV
    Awning Info 16' Electric with LED Lights
    Gross Combined Weight 15250 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • isata 3 24RB

    isata 3 24RB Floorplan Image

    Take a Virtual Tour

    Dynamax isata 3 Series Class C diesel motorhome 24RB highlights: Rear Bathroom ... more about isata 3 24RB

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Length 24 ft 7 in
    Ext Width 7 ft 10 in
    Ext Height 11 ft 5 in
    Int Height 0 ft
    Interior Color Seashore, Pebble, Espresso
    Exterior Color Cabernet, Cosmic Blue, Granite, Sunset, Khaki
    Hitch Weight 5000 lbs
    Gross Weight 11030 lbs
    Fresh Water Capacity 35 gals
    Grey Water Capacity 32 gals
    Black Water Capacity 32 gals
    Tire Size 16
    Furnace BTU 20000 btu
    Generator 3.6KW Onan LP
    Fuel Type Diesel
    Engine 3.0L V6 Turbo Diesel
    Chassis Mercedes Benz Sprinter
    Horsepower 188 hp
    Fuel Capacity 26 gals
    Wheelbase 170 in
    Number Of Bunks 1
    Torque 325 ft-lb
    Refrigerator Type Double Door
    Refrigerator Size 7 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight Front 4410 lbs
    Axle Weight Rear 7720 lbs
    LP Tank Capacity 20.3 gals
    Water Heater Type Truma Aqua Go Comfort On Demand
    AC BTU 15000 btu
    TV Info LR 32" LED TV
    Awning Info 16' Electric with LED Lights
    Gross Combined Weight 15250 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • isata 3 24RW

    isata 3 24RW Floorplan Image

    Take a Virtual Tour

    Dynamax isata 3 Class C diesel motorhome 24RW highlights: Full Bathroom Private ... more about isata 3 24RW

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 3
    Slides 2
    Length 24 ft 7 in
    Ext Width 7 ft 10 in
    Ext Height 11 ft 5 in
    Int Height 0 ft
    Interior Color Seashore, Pebble, Espresso
    Exterior Color Cabernet, Cosmic Blue, Granite, Sunset, Khaki
    Hitch Weight 5000 lbs
    Gross Weight 11030 lbs
    Fresh Water Capacity 35 gals
    Grey Water Capacity 32 gals
    Black Water Capacity 32 gals
    Tire Size 16
    Furnace BTU 20000 btu
    Generator 3.6KW Onan LP
    Fuel Type Diesel
    Engine 3.0L V6 Turbo Diesel
    Chassis Mercedes Benz Sprinter
    Horsepower 188 hp
    Fuel Capacity 26 gals
    Wheelbase 170 in
    Available Beds Queen
    Torque 325 ft-lb
    Refrigerator Type Double Door
    Refrigerator Size 7 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight Front 4410 lbs
    Axle Weight Rear 7720 lbs
    LP Tank Capacity 20.3 gals
    Water Heater Type Truma Aqua Go Comfort On Demand
    AC BTU 15000 btu
    TV Info LR 32" LED TV, BR 32" LED TV
    Awning Info 16' Electric with LED Lights
    Gross Combined Weight 15250 lbs
    Shower Type Radius
    Electrical Service 30 amp

isata 3 Features:

Standard Features



Chassis

  • Mercedes-Benz® Sprinter Chassis
  • 3.0L V6 Turbo Diesel Engine (188hp and 325 ft.-lbs. of Torque)
  • 5-Speed Automatic Transmission with Overdrive
  • 26.4-Gallon Fuel Tank
  • 4.75-Gallon Diesel Exhaust Fluid Tank
  • Trailer Hitch (5,000 Tow lbs.) with 7-Way Round Tow Connection*
  • Upgraded Hellwig® Rear Sway Bar
  • Bilstein® Gas-Charged Rear Shock Absorbers
  • Electronic Stability Package
  • Momentary Battery Booster Switch for Connecting Chassis and House Batteries
  • Single 12V AGM Chassis Battery
  • 220-Amp Alternator
  • LED Brake, Turn, and Backup Lights
  • Aluminum Running Boards
  • Front and Rear Tires: LT215/85 R16
  • Single Front Wheels: Steel (5.5” x 16”)
  • Dual Rear Wheels: Steel (5.5” x 16”)
  • Valve Extensions (Where Applicable)
  • 4.18 Rear Axle Ratio
  • Spare Tire with Carrier Mounted to Frame

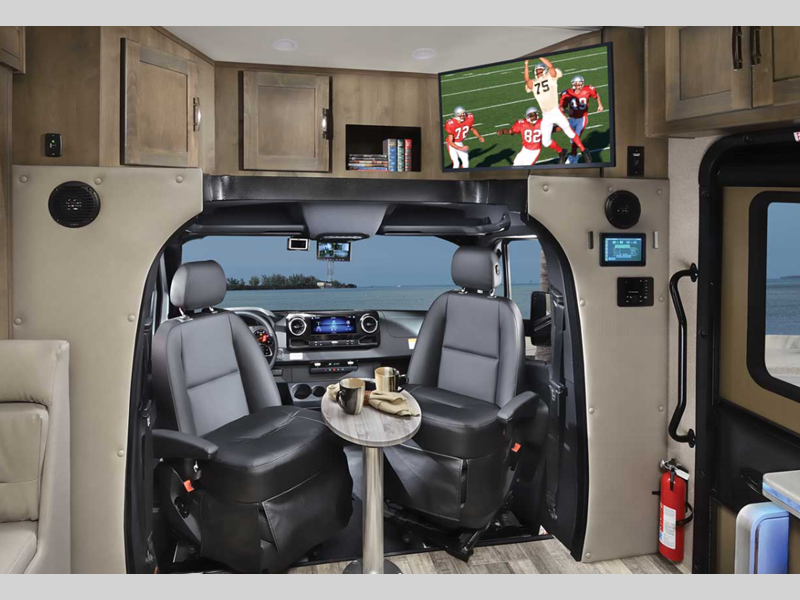

  • Leatherette Driver and Passenger Seats with Swivel Bases
  • Multifunction Steering Wheel*
  • Instrument Cluster with Pixel-Matrix Display*
  • Backup and Side View Cameras

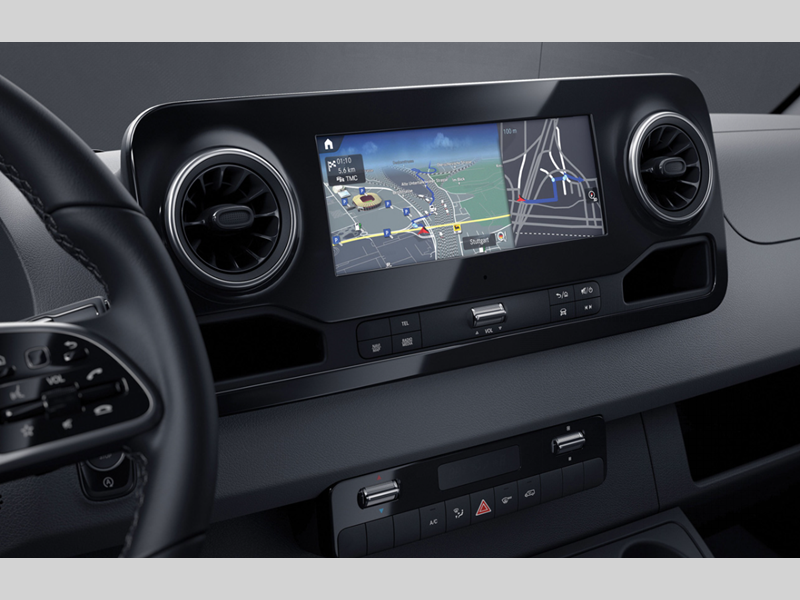

  • Kenwood® 7” Touch Screen Dash Infotainment System with AM/FM, Bluetooth®, Sirius/XM® (Tuner and Antenna), Apple® CarPlay™/Android® Auto™ Functionality, and Dedicated Camera Bu
  • 12V and USB Accessory Ports
  • Cruise Control
  • Adjustable Steering Column
  • Hydrographic Woodgrain Cab Accents
  • Power Exterior Mirrors (Auto-Heated at Low Temperatures)*
  • Power Windows and Locks
  • 3-Point Seat Belts
  • Front Safety Air Bags
  • Deluxe, Removable Automotive Cab Carpet Mat
  • Drink Holders
  • * N/A Canadian Chassis

Construction

  • 1 ½” Aluminum-Framed, Laminated Sidewalls with Block Foam Insulation
  • Gel-Coat Fiberglass Walls
  • Aluminum-Framed Floor
  • Aluminum-Framed Roof Trusses
  • Crowned, One-Piece Fiberglass Roof
  • Foil-Lined Ductwork Throughout
  • Aerodynamic Fiberglass Front Wing Panels
  • Aerodynamic Fiberglass Front Cap with Cab-Over Cabinets
  • Dark-Tinted, Frameless Windows
  • Seamless Rotocast Storage Compartments
  • Locking Aluminum Exterior Storage Doors with Compression Latches
  • Electric Slide System
  • Power Rear Stabilizer Jacks with Independent Left and Right Controls

Exterior

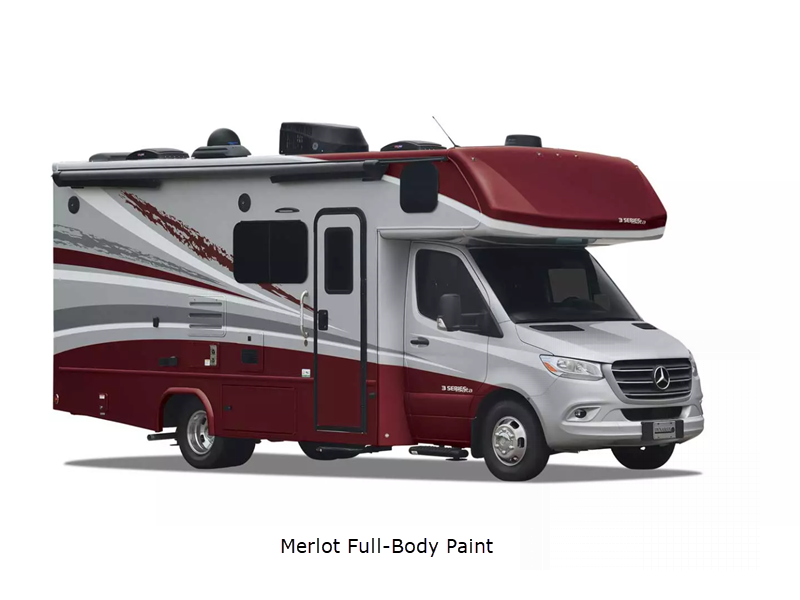

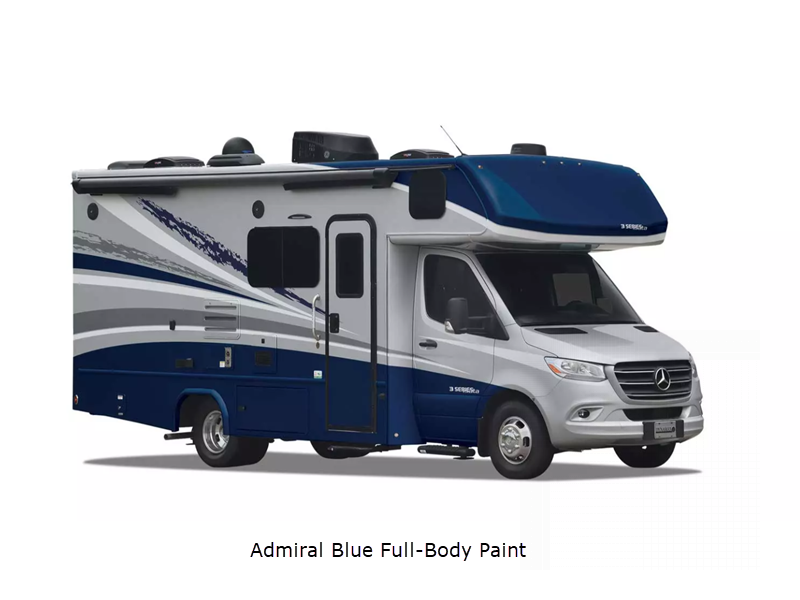

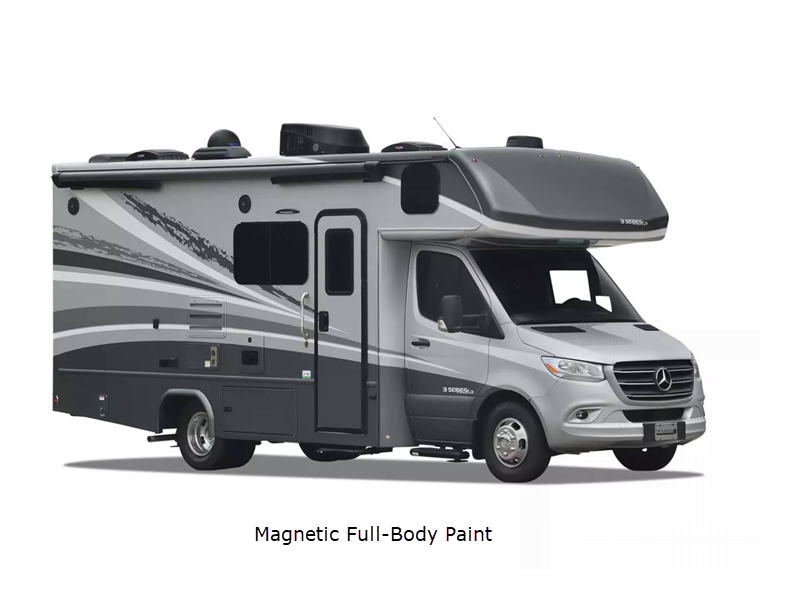

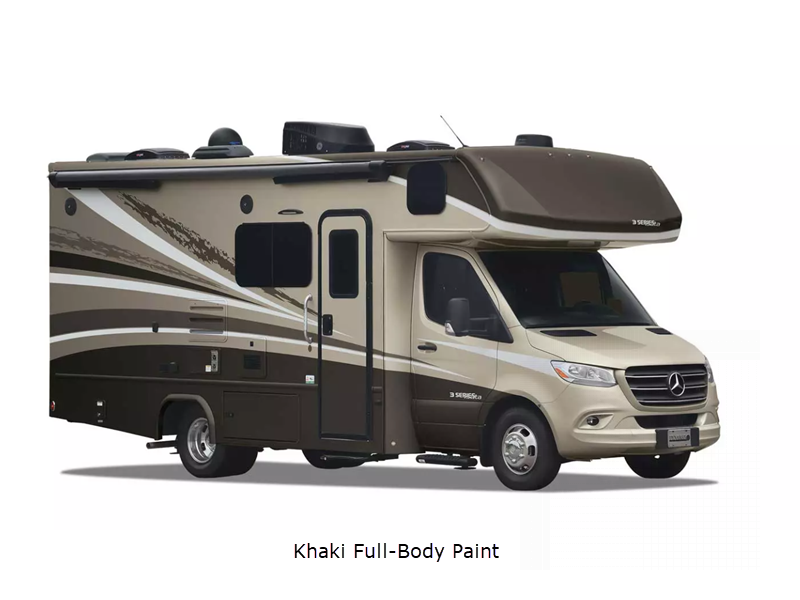

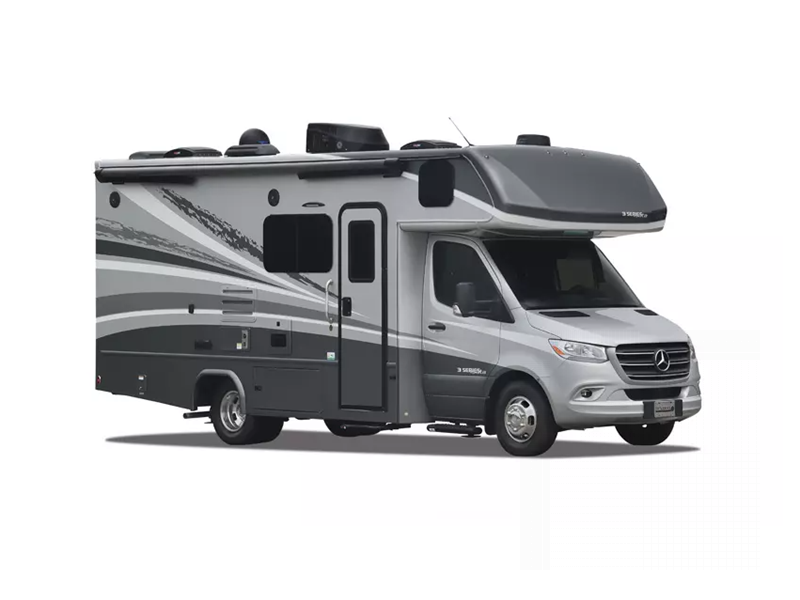

  • Custom Full Body Paint Package
  • Premium Cut and Buffed Paint Finish (Where Applicable)
  • Front-End Diamond Shield® Paint Protection
  • Dual-Pitch, Armless Patio Awning with LED Lighting and Motion-Activated Retraction
  • Slideout Topper(s)
  • LED Patio Light
  • Entry Door with Rotary Latch, Dark-Tinted, Frameless Window, and Integrated Shade
  • Lighted Acrylic Entry Grab Handle
  • Lighted Power Entry Step
  • Exterior TV Connection
  • Exterior Speakers
  • Front and Rear LED Clearance and Marker Lighting

Interior

  • Premium Vinyl Flooring Throughout
  • Soft-Touch Padded Vinyl Ceiling
  • LED Flush-Mount Ceiling Lighting
  • Dinette with Pullout Drawers
  • Coordinating Window Treatments
  • Blackout Roller Shades
  • Italian Ultralight Poplar Cabinetry

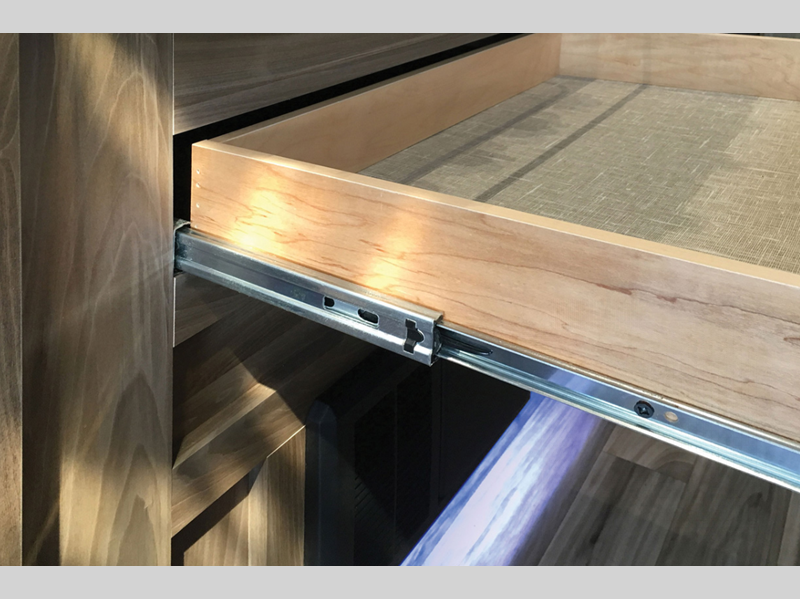

  • Full Extension, Soft-Closing Drawer Guides (Where Applicable)
  • Hidden Hinges
  • 32” LED TV (Living Area)
  • Stereo System - AM/FM/CD/DVD with Zoned Speaker Control and Bluetooth® Smart Phone App Control
  • Easy Access Battery Compartment Beneath Entry Step
  • Entry with Non-Skid Rubber Step and Steel Risers
  • Thermal, Reflective Front Privacy Shades
  • USB Charging Ports

Kitchen

  • 7.0 cu. ft. 2-Way Refrigerator (Double-Door)
  • Sealed Gas Range with Glass Cover
  • Convection Microwave Oven
  • Solid Surface Countertops
  • Solid Surface Countertop Extension
  • Stainless Steel Sink with Solid Surface Cover
  • Residential Stainless Steel Spring Gooseneck Faucet
  • Under-Cabinet Lighting
  • MaxxAir® Power Vent with Built-In Rain Cover and Remote

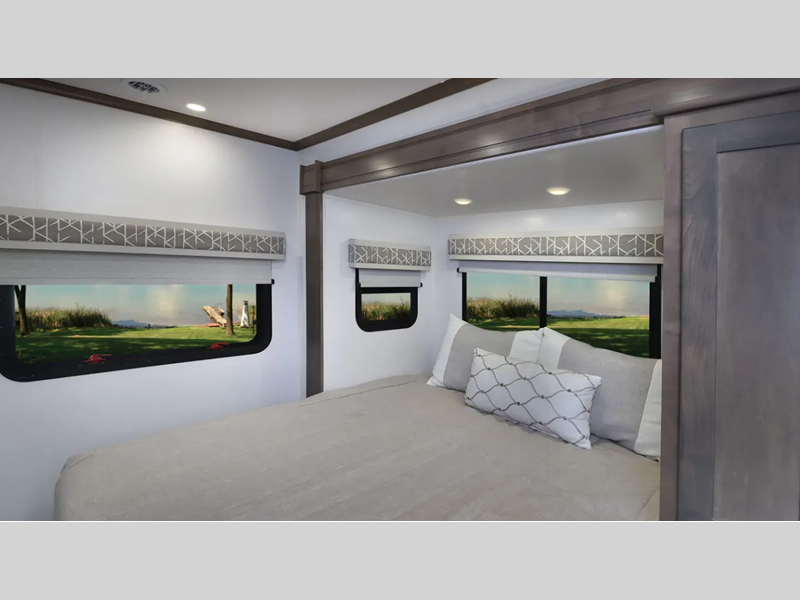

Bedroom

  • Queen Bed (60” x 74”) with Gel-Infused Memory Foam Mattress (24FW & 24RW)
  • Full Bed (50” x 80”) with Gel-Infused Memory Foam Mattress *(24CB)
  • Electronic Drop-Down Queen Bed (60” x 80”) with Gel-Infused Memory Foam Mattress (24RB)
  • Under-Bed Storage (24FW & 24CB)
  • Deluxe Padded Headboard (Floor Plan Specific)
  • Designer Bedding Package
  • 32” LED TV (N/A – 24RB)
  • Cedar-Lined Wardrobe
  • LED Reading Lights
  • USB Charging Ports
  • Privacy Partition (N/A – 24RB)
  • MaxxAir® Power Vent with Built-In Rain
  • Cover and Remote

Bathroom

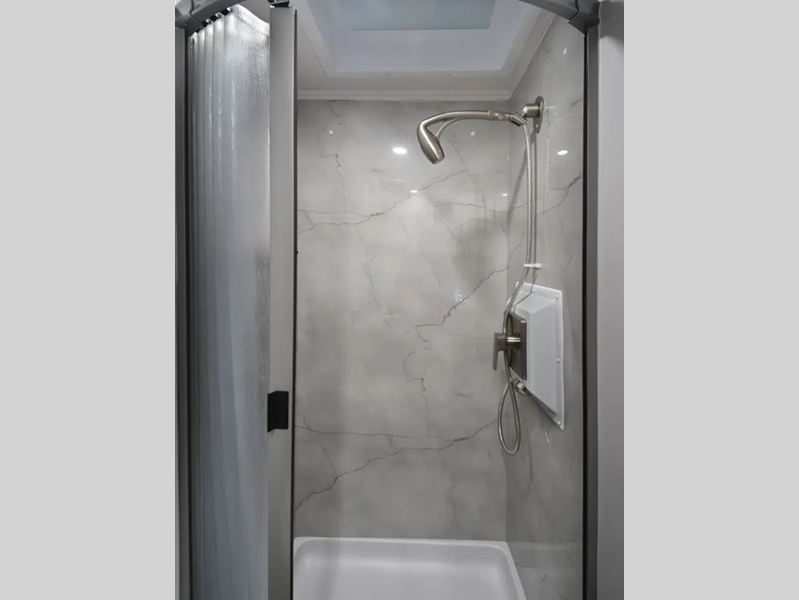

  • ABS Shower with Light-Weight, Soft-Sided Shower Door
  • Shower Skylight
  • Oxygenics Body Spa® RV Shower Head
  • Residential Vanity Faucet with Stainless Steel Sink
  • Composite Foot-Flush Toilet with Hand Sprayer (24CB and 24FW)
  • Porcelain Electronic-Flush Macerator Toilet (24RB and 24RW)
  • MaxxAir® Power Vent with Built-In Rain Cover and Remote

Utilities

  • Dual 12V Group 27 AGM Deep-Cycle, Maintenance-Free Auxiliary Batteries
  • Battery Disconnect at Entry
  • 30-Amp Service
  • 1,000W Pure Sine Wave Inverter (1,920 Peak Watts)
  • 3.6kW Onan® LP Generator with Auto Transfer Switch (Mounted on Isolator Pads)
  • Ducted, Low-Profile 15,000-BTU Air Conditioner with Heat Strip
  • 20,000-BTU Furnace with Electronic Ignition
  • 60,000-BTU Truma® Aqua Go Comfort™ On-Demand Water Heater (LP)

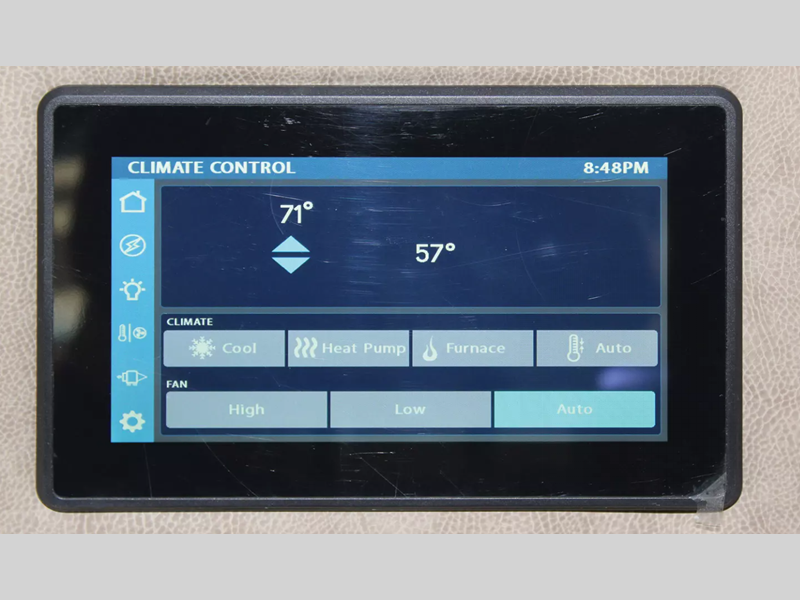

  • Thermostatically-Controlled Heating and Cooling
  • 20.3-Gallon LP Tank (WC)
  • LP Quick Connect
  • Water Filtration System
  • Exterior Shower in Service Bay
  • Interior Monitor Panel with LP/Tank/Battery Readout
  • Exterior GFCI Receptacle
  • Winegard® ConnecT 2.0™ Dome Antenna (WiFi Extender, 4G LTE, Omnidirectional HD OTA, FM, SIM Card Port)
  • Cable TV/Satellite Hookup
  • 4x4 HDMI Matrix
  • 60-Amp Progressive Dynamics Converter with Charge Wizard® System
  • Black Tank Flush
  • 12V Heat Pads on Fresh, Gray, and Black Tanks
  • Water Management Valve for Fill and Winterizing
  • Upgraded 12V On-Demand Water Pump (4 Gallons Per Minute)
  • Carbon-Monoxide, LP, and Smoke Detectors
  • Fire Extinguisher

Options

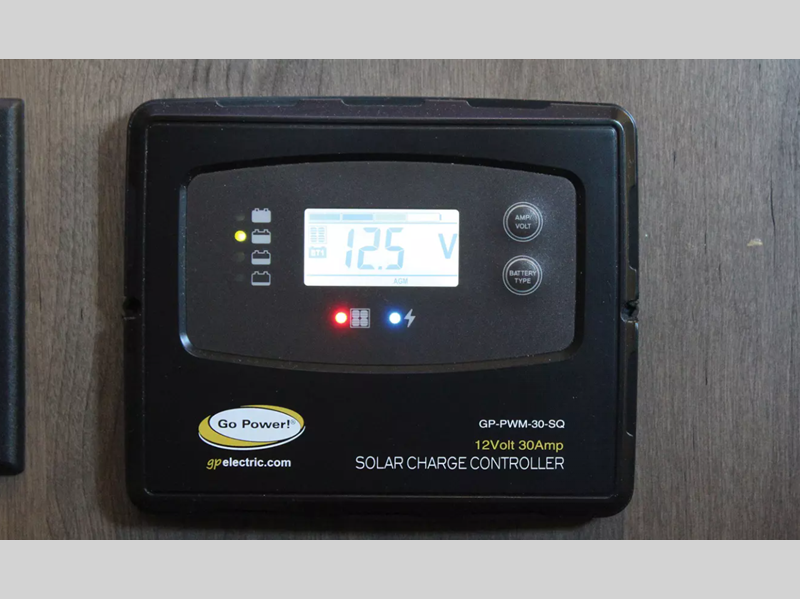

  • Solar Panels - Two 100 Watt with 30 Amp Controller
  • Alcoa Aluminum Wheels (Set of Four)

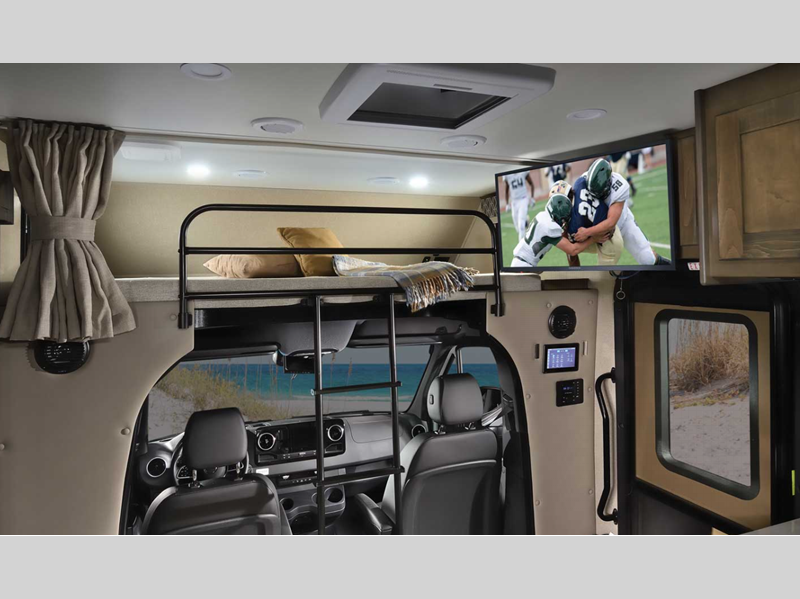

  • Extended Fiberglass Front Cap with 54” x 80” Cab-Over Bunk Mattress and Privacy Curtain (N/A – 24RB)
  • Automatic, 4-Point Hydraulic Leveling Jacks (N/A with diesel generator) (N/A – 24RW)
  • Dual Reclining Theater Seats in Place of Dinette (N/A – 24RB)
  • Tri-fold Sofa with Pedestal Table in Place of Dinette (N/A – 24RB)
  • Jackknife Sofa with Pedestal Table in Place of Dinette (24RB)
  • Cocktail Table Between Cab Seats
  • Cab Seat Booster Cushions (Set of two)
  • Remis® Cab Window Shade System in Place of Solar Shades
  • Winegard® In-Motion T4 Satellite (Dish® SD-HD, DirecTV® SD, BellTV® SD-HD)
  • 3.2kW Onan® Diesel Generator in Place of Standard 3.6kW LP (N/A with 4-point leveling jacks)
  • Kenwood® Front DVR Camera with Forward Collision and Departure Delay Alerts

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

Manu-Facts:

From the day the Dynamax brand originated, a progressive vision has set these prestigious vehicles apart. Built to perform at a higher standard of excellence that goes beyond what meets the eye, Dynamax is driven by an unending pursuit for precision and quality inside out and in-between.

Over the years, legendary product integrity and customer loyalty have combined to build a powerful brand. The foundation for success has been simple. Start with a solidly engineered OEM cab chassis platform and concentrate on building a cohesively engineered muscle car style coach on it. The resulting product is visually appealing and structurally solid, with enhancements that improve maneuverability and ride comfort.

We work hard to provide the most enjoyable ownership experience in the industry. Through our dedicated on-site service department and our industry-leading Two-Year Coach Warranty, we are able to provide incredible value and successfully cultivate wonderful relationships with our owners.

At Dynamax, reaching a higher standard is not an option, it’s a tradition. When you take our higher standards of safety, quality, and reliability and then back them up with our industry-leading warranty & customer service, you get a very powerful combination. Just as in a home, an RV provides a number of opportunities for something to go wrong. While we work hard to assure that things do not go wrong, we make sure that our Warranty and Customer Service Support is there to take care of you if something does!

Dynamax is stronger than ever as part of Forest River, Inc. You can have confidence that we will be around to make your ownership worry free for a long time to come.
